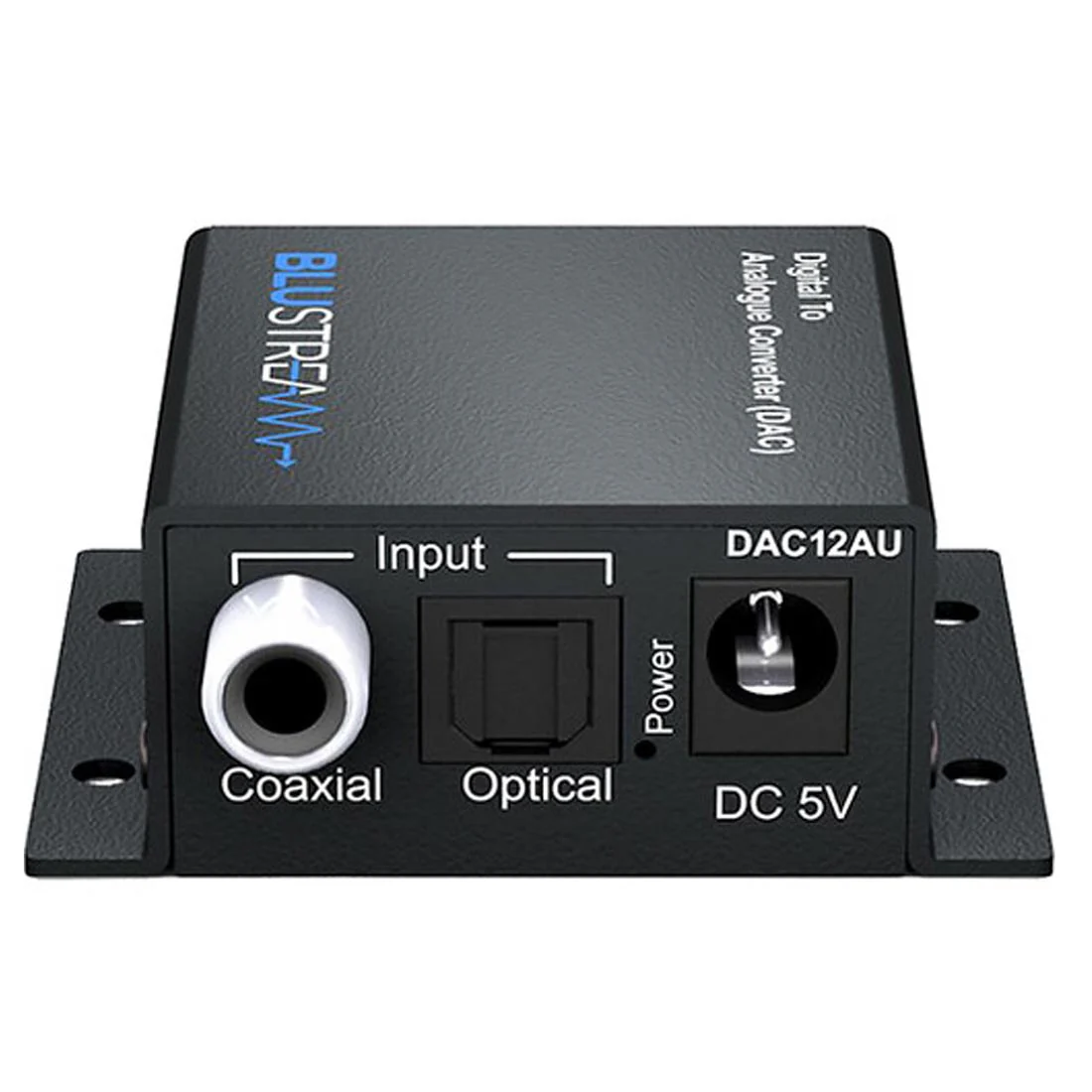

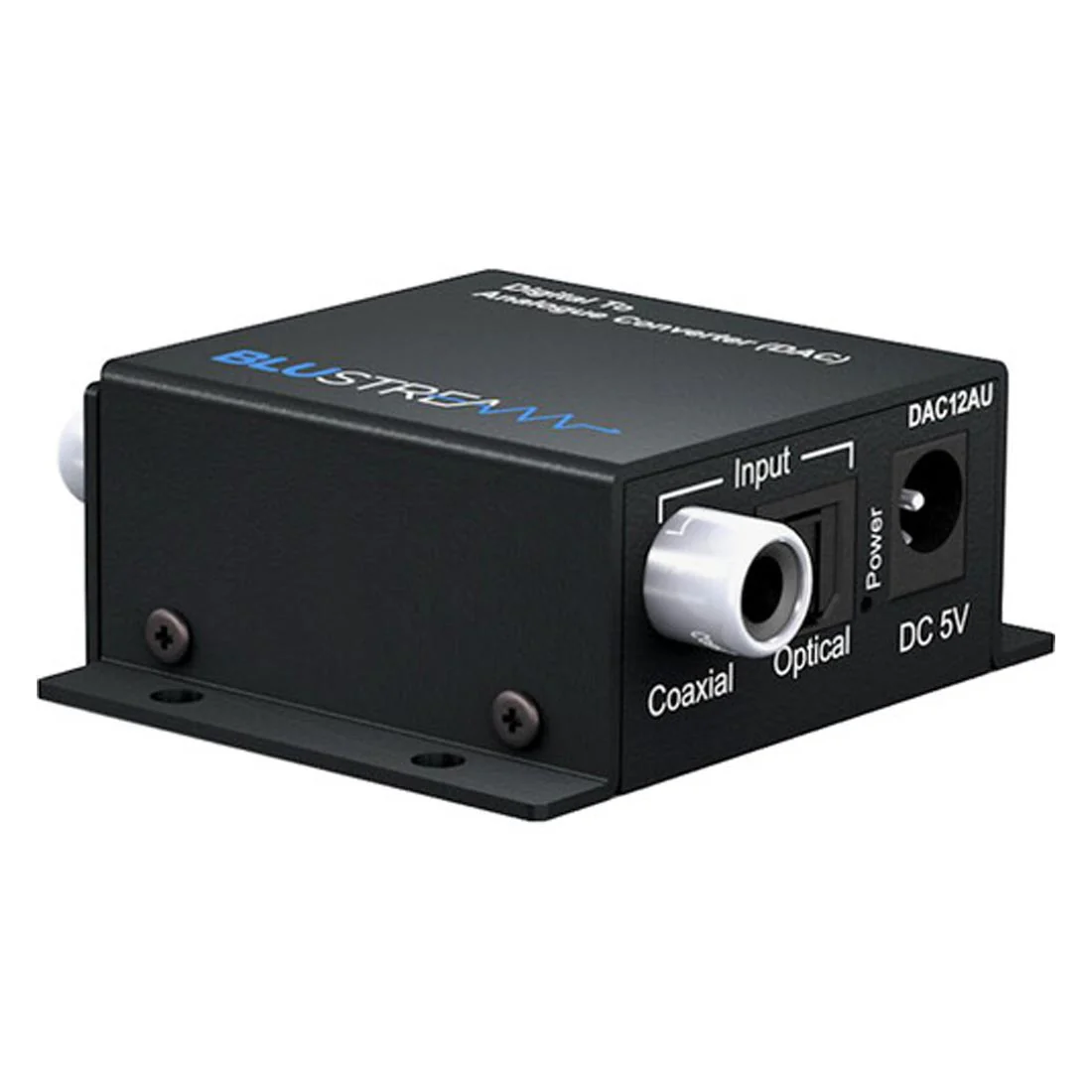

Blustream DAC12AU Digital To Analog Audio Converter (DAC12AU)

Blustream DAC12AU Digital To Analog Audio Converter (DAC12AU)

The Blustream DAC12AU converts either coaxial or optical digital audio to analog stereo L/R and also converts optical audio to coaxial digital output. It is designed for connecting the digital audio output from a TV display to an analog input on an amplifier.

Digital-to-analog conversion for TV-to-amplifier connections

This DAC provides straightforward digital-to-analog conversion and optical-to-coaxial digital conversion for common home AV setups.

• Converts either optical or coaxial digital to analog stereo L/R audio output.
• Converts optical digital audio input to coaxial digital audio output.
• Outputs coaxial digital and analog L/R audio concurrently.
• Does not downmix Dolby / DTS / multi-channel audio signals.

Easy setup and automatic input management

Installation and operation are simple, with automatic detection to streamline source selection.

• Plug-and-play.
• Auto-detects the digital connection in use.
• Optical digital input has priority over coaxial digital input.

192 kHz, 24-bit support

The DAC12AU supports multiple sample rates and utilizes 192 kHz operation for enhanced sound reproduction.

• Supports 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz sample rates up to 24-bit resolution.
• Utilizes 192 kHz sample rates for enhanced sound reproduction.

Connectivity and included accessories

Core connections and accessories support quick integration into existing systems.

• Audio inputs: 1 x optical digital, 1 x coaxial RCA (S/PDIF).
• Audio outputs: 2 x analog stereo Left/Right and 1 x coaxial RCA (S/PDIF).
• Includes 5V/1A DC power supply, mounting kit and user manual.

Frequently Asked Questions

• What audio conversions does the DAC12AU support?

  It converts either optical or coaxial digital audio to analog stereo L/R, and it converts optical digital audio input to a coaxial digital output.

• Can it output analog and digital signals at the same time?

  Yes. It outputs coaxial digital and analog L/R audio concurrently.

• Which input takes priority?

  The optical digital input has priority over the coaxial digital input, and the unit auto-detects the connection in use.

• What sample rates and resolution are supported?

  Supported sample rates are 32 kHz, 44.1 kHz, 48 kHz, 96 kHz and 192 kHz, up to 24-bit resolution.

• Does the DAC12AU downmix multi-channel audio?

  No. The DAC12AU does not downmix Dolby / DTS / multi-channel audio signals.

Add the Blustream DAC12AU to your cart to streamline digital-to-analog audio connections.
