TOA YW-1024 Antenna Distributor (YW1024 Y)

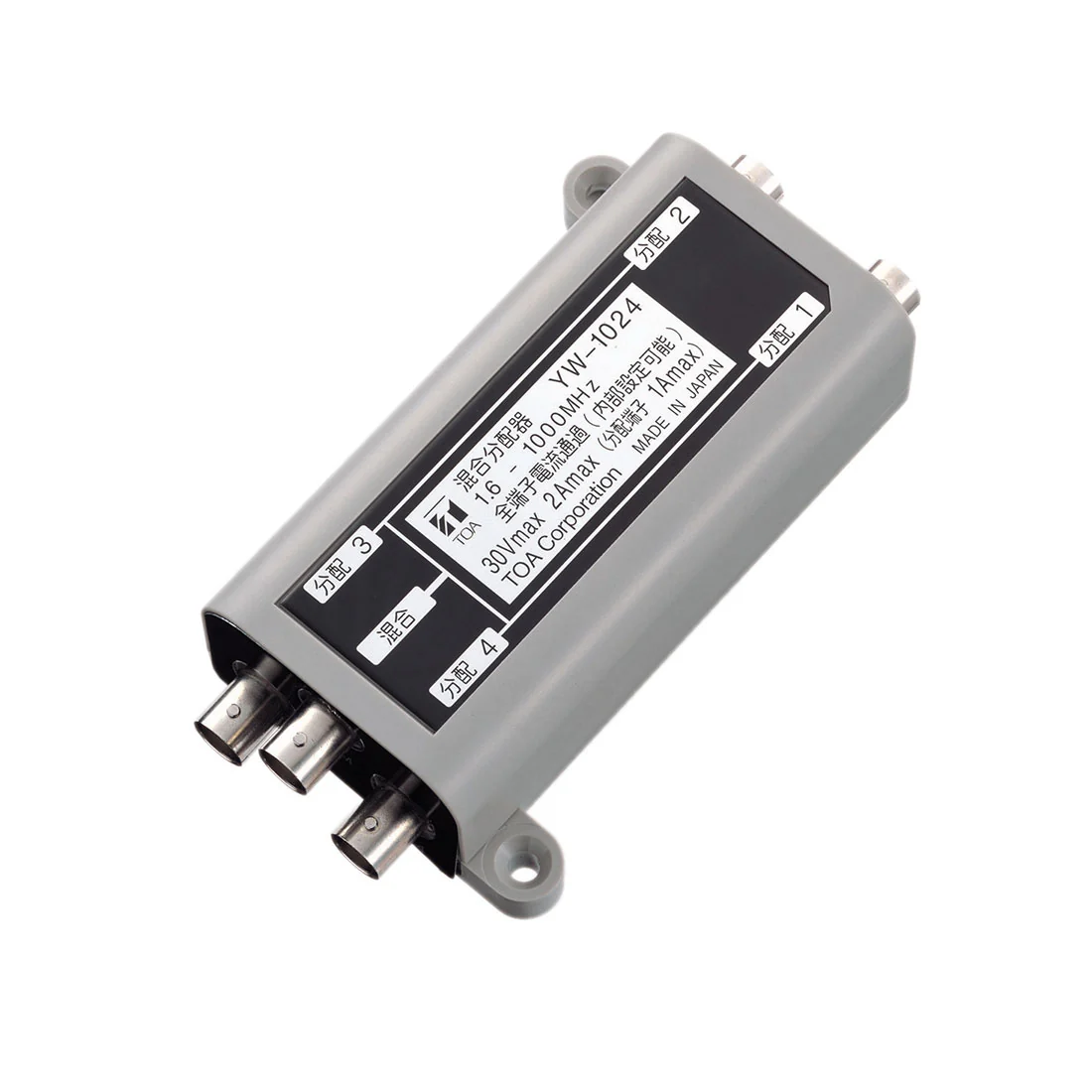

TOA YW-1024 Antenna Distributor

The YW-1024 is a distributor that operates in the 1.6 to 1000 MHz frequency band (except 50 to 70 MHz). Power supply is made simple by power passing type.

Specifications

• Frequency Range: 1.6 - 1000 MHz (excluding 50 - 70 MHz)
• Distribution Loss: 8.5 dB ±3 dB (between the Mixing and each Distribution terminals)
• Input/Output Impedance: 75 ?
• Coaxial Connector: Mixing terminal: BNC jack, power passing type (30 V DC or less, 2 A or less) Distribution 1 - 4 terminals: BNC jack, power passing type (30 V DC or less, 1 A or less)
• Operating Temperature -10 ? to +50 ? (14 ?F to 122 ?F)
• Operating Humidity: 90 %RH or less (no condensation)
• Finish: ABS resin, gray
• Dimensions: 75 (W) × 122 (H) × 34 (D) mm (2.95" × 4.8" × 1.34")
• Weight: 120 g (0.26 lb)
• Accessory: Unit fixing wood screw (4.1 × 25) - 2
